Semi-Regular Plane Tessellations - "Type 1"

(click on the image for a larger version)

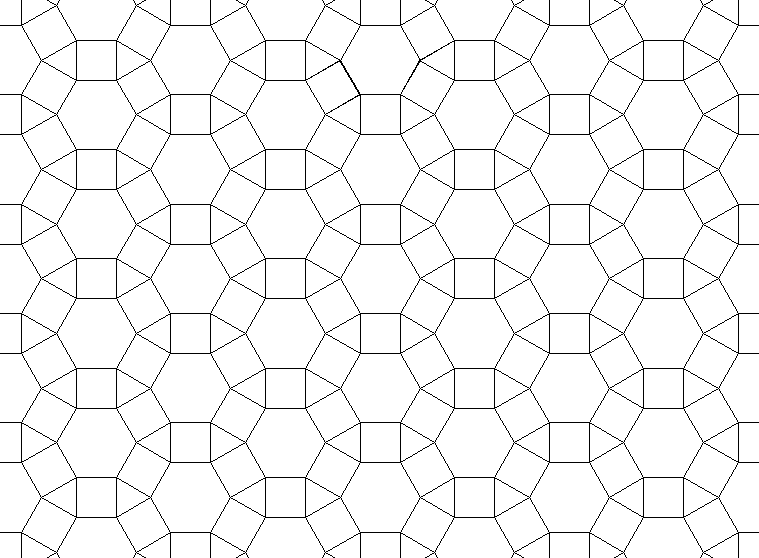

The above familiar edge network is easily recognisable as that of the 6,4,3,4 tessellation.  However, there are a further two tessellations sharing this network as can be seen below.  Both of the additional tessellations involve retrograde polygons:

6, 4, 3, 4 K:Ii, B:64, C: 3 6 | 2 = r{3 : 6}

12, 3/2, 12, 6 K:Ii, B:64, C: 3/2 6 | 6

12, 4, 12/11, 4/3 K:Ii, B:64, C: 2 6 (3/2 : 3) |

In each case, clicking onto the vertex figures above will show the sample cell superimposed on the above network.
