'Star' Tessellations - Type 11

(click on the image for a larger version)

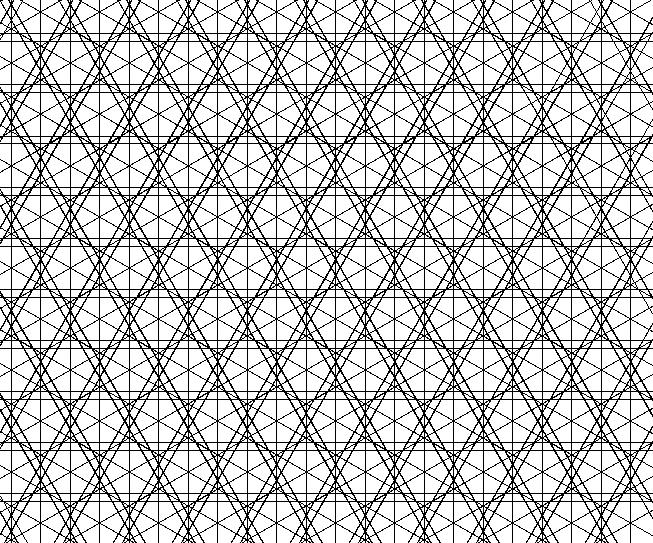

The above edge network is a stellation of the dodecagons in a 12,12,3 tessellation, with each dodecagon now forming the dodecagonal core of a dodecagram. As the original cells are not easy to see in the final network, a section of network with the original 12,12,3 tessellation highlighted shown below.



As only three edges meet at each vertex, only one tessellation can be formed using this network.  This tessellation was not included by Badoureau:

        12/5, 12/5, 3/2
K:-, B:-, C: 2 3 | 6/5 = t'{6,3}

Clicking onto the vertex figures above will show the sample cell superimposed on the above network.
